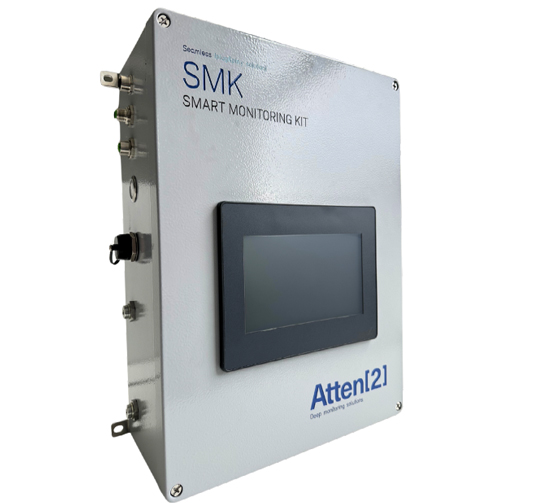

SMK - REAL TIME FLUID ANALYSIS
ON-SITE, REAL-TIME FLUID ANALYSIS
The Smart Monitoring Kit (SMK) takes fluid monitoring to the next level. It integrates the OilWear® sensor and the OilHealth® Max Probe with an HMI display to provide real-time data directly at the machine. Its plug-and-play design, compatible with any lubrication or hydraulic system, makes it an advanced, robust, and transformative solution for intelligent asset management.
Key Benifits
• OilWear® S120: Detects particles and bubbles
from 4 µm and analyzes their shape to identify
failure modes.
• OilHealth® Max Probe: Evaluates oil condition
and water presence in real time.
• Compatible with both pressurized and nonpressurized systems (integrated pump).
• Wide thermal range for operation under
demanding conditions.
• Wide thermal range for operation under
demanding conditions.
• Compatible with mineral and synthetic oils.
• Reinforced pump for increased reliability
• Data export via USB and remote monitoring
through RJ45 Ethernet.
• Configurable IP via Modbus for easy system
integration.
• Image storage on USB.
• Analog inputs (0–10 V) for expanded data
collection capabilities.
SPECIFICATIONS
| Power supply | 24 VDC, redundant supply |
|---|---|
| Current consumption | SMK : 500mA | SMKP : 1,5A |
| Counting output | ISO CODE 4406 / NAS 1638 |
| Alarms | Configurable alarms per level displayed on the screen and digital output |
| Digital output and communications | Ethernet RJ45 (Modbus: TCP/IP, FTP, VNC) |
| Oil pressure | SMK : 2 - 16 bar | 0 - 2,5 bar Rugged pump that allows back flushing |
| Operation temperature | From -20° C to 70° C |
| Viscosity Range | Up to 540 cSt, a viscosimeter can be plugged in the device |
| Fluid compatibility | *Mineral and synthetic oil |
| Precision | +/- 1 ISO CODE |
| Hydraulic connection | 1/8” BSPPF |
| Dimension/weight SMK | 249x400x132 // 5 kg |
| Dimension/weight SMKP | 320x410x150 // 15 kg |
| Wetted materials SMK | Stainless steel BK7 |
| Wetted materials SMKP | Stainless steel BK7 |
| Protection class | IP65 |

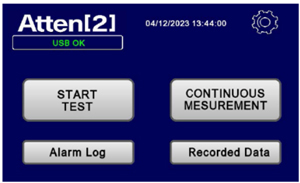

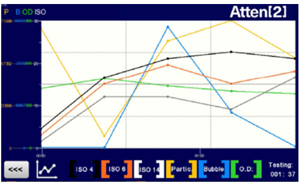

HMI
